Vol. 2024 No. 2 (2024)
Articles

Effects of lanthanum and ethylenediamine tetraacetic a cid

PDF
  • Qi Wang,
  • Tong Wu
Qi Wang
Chemical Engineering Institute, Qingdao University of Science and Technology, Qingdao, 266042, Shandong, China
Tong Wu
Chemical Engineering Institute, Qingdao University of Science and Technology, Qingdao, 266042, Shandong, China
cover image

Published 04-06-2024

Keywords

  • catalytic chemistry,
  • hydrodesulfurization,
  • lanthanum,
  • ethylenediamine tetraaceticacid

Copyright (c) 2024 Cambridge Science Advance

Creative Commons License

This work is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License.

How to Cite

[1]
Q. Wang and T. Wu, “Effects of lanthanum and ethylenediamine tetraacetic a cid”, Camb. Sci. Adv., vol. 2024, no. 2, pp. 7–12, Jun. 2024, doi: 10.62852/csa/2024/9.

Abstract

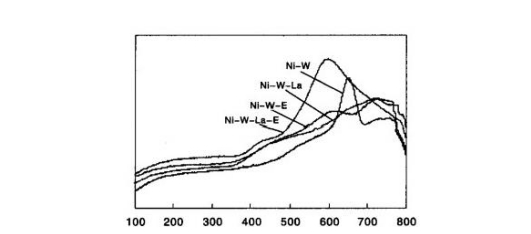

Using nickel-tungsten as active metals and TiO₂-Al₂O₃ as the support, Ni-W/TiO₂-Al₂O₃ catalysts for the hydrodesulfurization of heavy oil were prepared by wetness impregnation. The effects of the modification of lanthanum, ethylenediamine tetraacetic acid (EDTA)and La in cooperation with EDTA on the structure and hydrodesulfurization performance of the catalysts were investigated. The catalysts were characterized by XRD, BET, H₂-TPR and SEM. The results indicated that La and EDTA could weaken the interaction between support and active component, facilitate the reduction of active component, and benefit the formation of Ni-W-S phase. Addition of La or EDTA could increase the surface area and suppress the agglomeration of active metals on surface, forming smaller and highly dispersed active phase particles. The La, EDTA and combined La and EDTA modified catalysts possessed higher HDS activity than Ni-W sample, Ni-W-La-E catalyst had the highest HDS activity, and its thiophene conversion reached 99.7%.

PDF

References

  1. Zhang K, Hu J, Gao S, et al. Sulfur content of gasoline and diesel fuels in northern China[J].Energy Policy,2010,38 (6):2934-2940.
  2. Sano Y, Sugahara K, Choi K H, et al. Two-step adsorption process for deep desulfurization of diesel oil[J]. Fuel, 2005, 84(7/8):903-910.
  3. Mcvicker G B, Ziemiak J J. Chemisorption properties of platinum and iridium supported on TiO₂-Al₂O₃, mixed-oxide carriers: Evidence for strong metal -support interaction formation [J]. Journal of Catalysis ,1985,95(2):473-481.
  4. Ouafi D, Mauge F, Lavalley J C, et a l. Nature and structure of tungsten surface species present on NiO-WO₃/Al₂O₃, hydrotreating catalysts [J]. Catalysis Today,1988,4(1):23-37.
  5. Zuo D, Hong N, Vrinat M, et al. Study on the hydrodesulfurization active phase in sul fided NiW/Al₂O₃catalyst I.XPS and HREM characterizations[J]. Chinese Journal of Cataly- sis,2004,25(4):373-376.
  6. Lucrédio A F, Assaf JM, Assaf E M. Reforming of a model biogas on Ni and Rh-Ni catalysts: Effect of adding La[J]. Fuel Processing Technology ,2012,102(10):124-131.
  7. Lu Weiguang, Long Jun, Tian Huiping. Effect of lanthanum and cerium modification on the properties of alumina [J]. Journal of Catalysis, 2003,24 (8): 574-578.
  8. Yu X, Wang N, Chu W, et al. Carbon dioxide refor ming of methane for syngas production over La-promoted NiMgAl catalysts derived from hydrotalcites [J]. Chemical Engineering Journal,2012,209(41):623-632.
  9. Lélias M A, Guludec E L, Mariey L, et al. Effect of EDTA addition on the structure and activity of the active phase of cobalt-molybdenum sulfide hydrotreatment catalysts[J].Catalysis Today,2010,150(3/4):179-185.
  10. Vakros J, Lycourghiotis A , Voyiatzis. G A, et al. CoMo/Al₂O₃-SiO₂ catalysts prepared by co-equilibrium deposition filtration: Characterization and catalytic behavior for the hydrodesulphurization of thiophene [J]. Applied Catalysis B:Environmental,2010,96(3/4):496-507.
  11. Jing Liqiang, Zhang Xin, Qu Yichun, et al. Photoluminescence of Lanthanum -doped TiO₂ nano particles and their photocatalytic activity[J]. Journal of The Chinese Rare Earth Society,2004,22(6):746-750.
  12. Guo Xikun, Chen Qingsheng, Zhang Junhao, et al. Modification of the Cu/Al₂O₃ catalyst and its catalytic properties for the selective reduction of NO [J]. Journal of Catalysis, 2005,26 (12): 1104-1108.
  13. Osorio-vargas P, Flores -gonzalez N A, NavarroR M, et al. Improved stability of Ni/Al ₂O₃, catalysts by effect of promoters (La₂O₃, CeO₂) for ethanol steam-reforming reaction[J]. Catalysis Today,2016,259:27-38.
  14. Guevara A, Alvarez A, Vrinat M. Effect of TiO-AlO sol-gel supports on the superficial Ni and Mo species in oxidized and sulfided NiMo/TiO-AlO catalysts: Influence on dibenzothiophene hydrodesulfurization[J]. Catalysis Letters,2008,126(3/4):268-274.
  15. Lin Ling, Yi Xiaodong, Qiu Bo, et al. Preparation and characterization of MoNiP/Al₂O₃ catalysts for hydrodesulfurization without presulfurization [J]. Journal of Catalysis, 2007,28 (12): 1096-1100.
